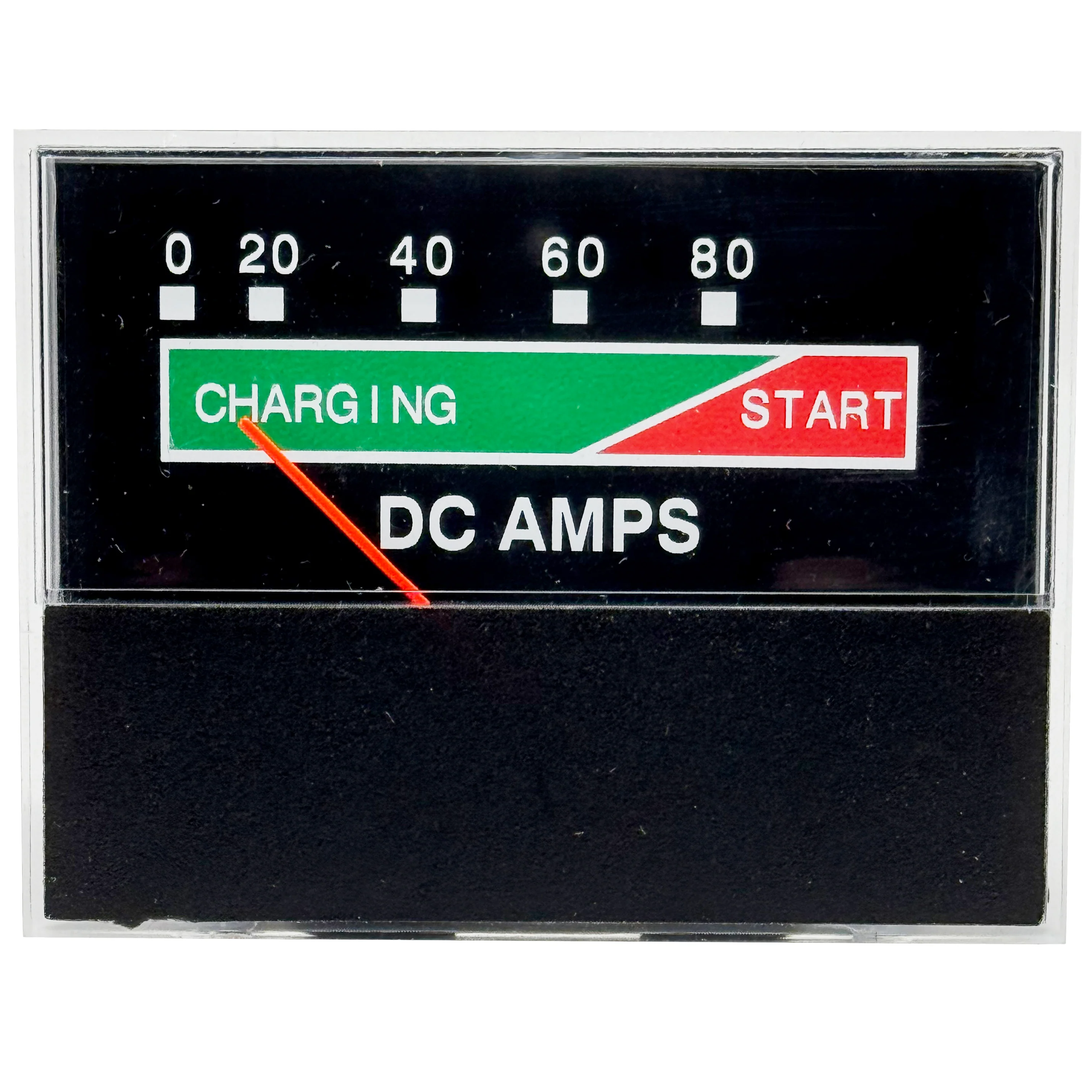

PR96-80B - Amp Meter 0-80A w/Boost Snap-In w/Inductive Pick-Up for Battery Chargers
80 Amp Meter with START for Schumacher Battery Chargers, Snap-In Mount, Inductive Pick-Up, Replaces Schumacher 5399100145, 5399-100-145
Direct Replacement for Schumacher meter 5399100145, 5399-100-145. Replacement for various 40-80A wheel chargers with BOOST from Schumacher, and other chargers. Snap-in mounting method. Inductive pickup, no meter connections required. This meter may be fitted in any battery charger with a 1.3"H x 2.15"W mounting hole in the panel - check dimensions, bezel is significantly larger than mounting hole.
Replaces OEM amp meter Schumacher 5399100145, 5399-100-145.
Features
• Black ABS Backplate with Clear Bezel
• Bottom Movement - Needle pivots from bottom
• Inductive Pick-up - Charging current flows through the pick-up
• Accuracy: 5% of Full Scale

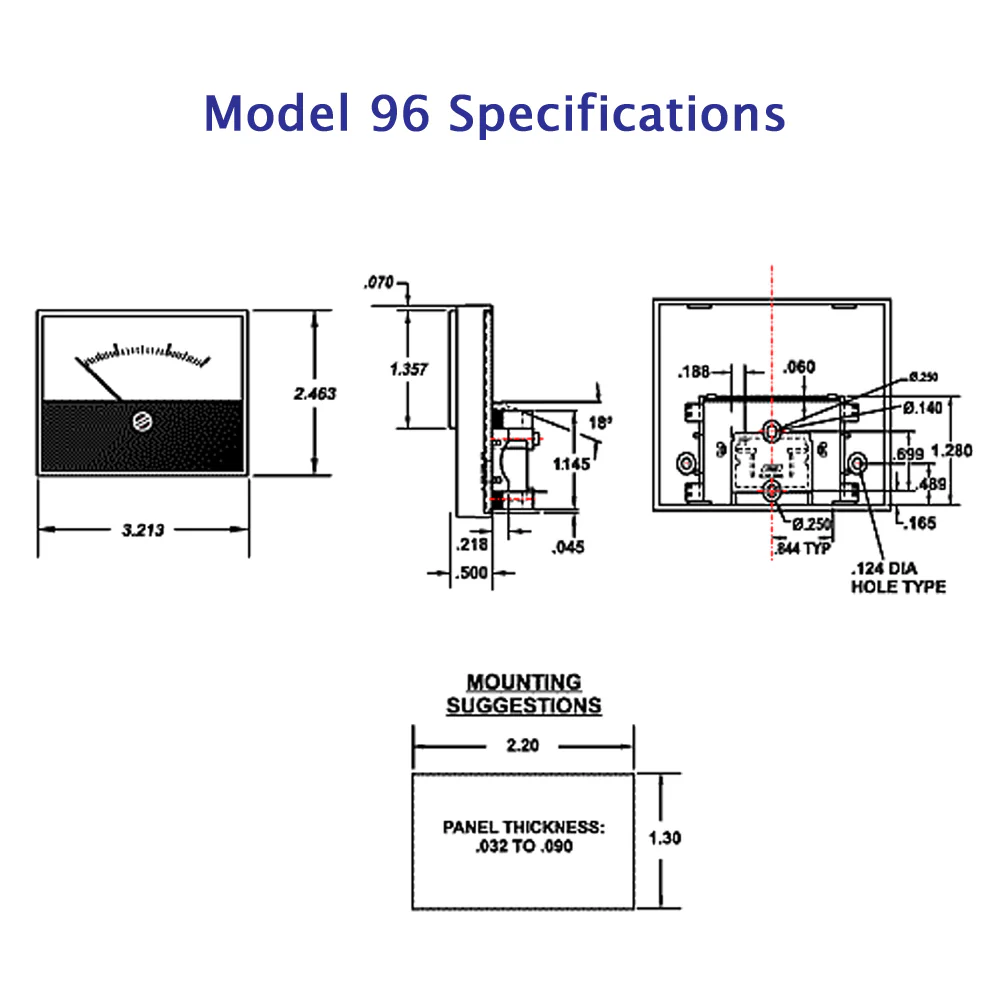

Specifications
• 2.50"H x 3.25"W Bezel Outer Dimensions
• 1.30"H x 2.20"W Panel Mount Hole
80 Amp Meter with START for Schumacher Battery Chargers, Snap-In Mount, Inductive Pick-Up, Replaces Schumacher 5399100145, 5399-100-145
Direct Replacement for Schumacher meter 5399100145, 5399-100-145. Replacement for various 40-80A wheel chargers with BOOST from Schumacher, and other chargers. Snap-in mounting method. Inductive pickup, no meter connections required. This meter may be fitted in any battery charger with a 1.3"H x 2.15"W mounting hole in the panel - check dimensions, bezel is significantly larger than mounting hole.
Replaces OEM amp meter Schumacher 5399100145, 5399-100-145.
Features
• Black ABS Backplate with Clear Bezel
• Bottom Movement - Needle pivots from bottom
• Inductive Pick-up - Charging current flows through the pick-up
• Accuracy: 5% of Full Scale
Specifications
• 2.50"H x 3.25"W Bezel Outer Dimensions
• 1.30"H x 2.20"W Panel Mount Hole
Description
80 Amp Meter with START for Schumacher Battery Chargers, Snap-In Mount, Inductive Pick-Up, Replaces Schumacher 5399100145, 5399-100-145
Direct Replacement for Schumacher meter 5399100145, 5399-100-145. Replacement for various 40-80A wheel chargers with BOOST from Schumacher, and other chargers. Snap-in mounting method. Inductive pickup, no meter connections required. This meter may be fitted in any battery charger with a 1.3"H x 2.15"W mounting hole in the panel - check dimensions, bezel is significantly larger than mounting hole.
Replaces OEM amp meter Schumacher 5399100145, 5399-100-145.
Features
• Black ABS Backplate with Clear Bezel
• Bottom Movement - Needle pivots from bottom
• Inductive Pick-up - Charging current flows through the pick-up
• Accuracy: 5% of Full Scale
Specifications
• 2.50"H x 3.25"W Bezel Outer Dimensions
• 1.30"H x 2.20"W Panel Mount Hole
