120 Minute Mechanical Timer & Hardware Kit

This very popular timer is used to replace OEM timers in Schumacher, Century, and other popular chargers. Easily installs with 4mm screws (included) through the charger panel and into the mounting plate on the timer. The screws are covered by the sturdy press-fit skirted knob. Wire terminals use .250" industry-standard solderless push-on connectors. No AC power is required to run this timer. No specialty tools required.

When oriented with the "OFF" position at 12 o'clock, this switch has a "HOLD" position (constant ON) when rotated counterclockwise to the 11 o'clock position.
Otherwise, when rotated clockwise to a set position, it will countdown back to the OFF position at 12 o'clock. A finish bell alerts you to the timer returning to the OFF position with a single ding.

Replaces

Schumacher Timer 0099000094, 0099-000094, 2299001548, 2299-001548
Snap-On Timer 2-14866
Century/Solar Timer 246-457-666, 246-515-666
Goodall Timer 51-245, 51-246, 51-248, 246-337-000, 246-167-000, 246-167-666

Note: Some of these OEM timers such as the Schumacher 0099000094 were 135 minute duration, which are discontinued by Schumacher. The 120 minute timer may be used to replace these, or the 697124 135 minute timer is now available. A 120 minute timer dial label is included, should you wish to use it.

Features

• 120 Minute duration, with "HOLD" position.
• Mounts in charger panel with included M4 screws.
• Straightforward instructions and simple design allows easy installation. No special tools are required.

Special Mounting Note

Over the years, battery charger manufacturers have used versions of this timer that mounted with either M3 (3mm) or M4 (4mm) screws. This timer uses the larger M4 screws, which are supplied in the kit. If you are replacing a timer that used the smaller M3 screws, it will be necessary to increase the size of the mounting holes in the charger cabinet. You can open the holes with a small drill bit. 4mm, 5/32”, or 3/16” bits will all work.

Specifications

• .250" Push-on connectors
• Switched Current Rating - 13A/120VAC, 16A/250VAC
• Timer body - 1.71"H x 1.85"W x 1.04"D
• Stem - .70"L x 6MM (.236") Diameter

Contents

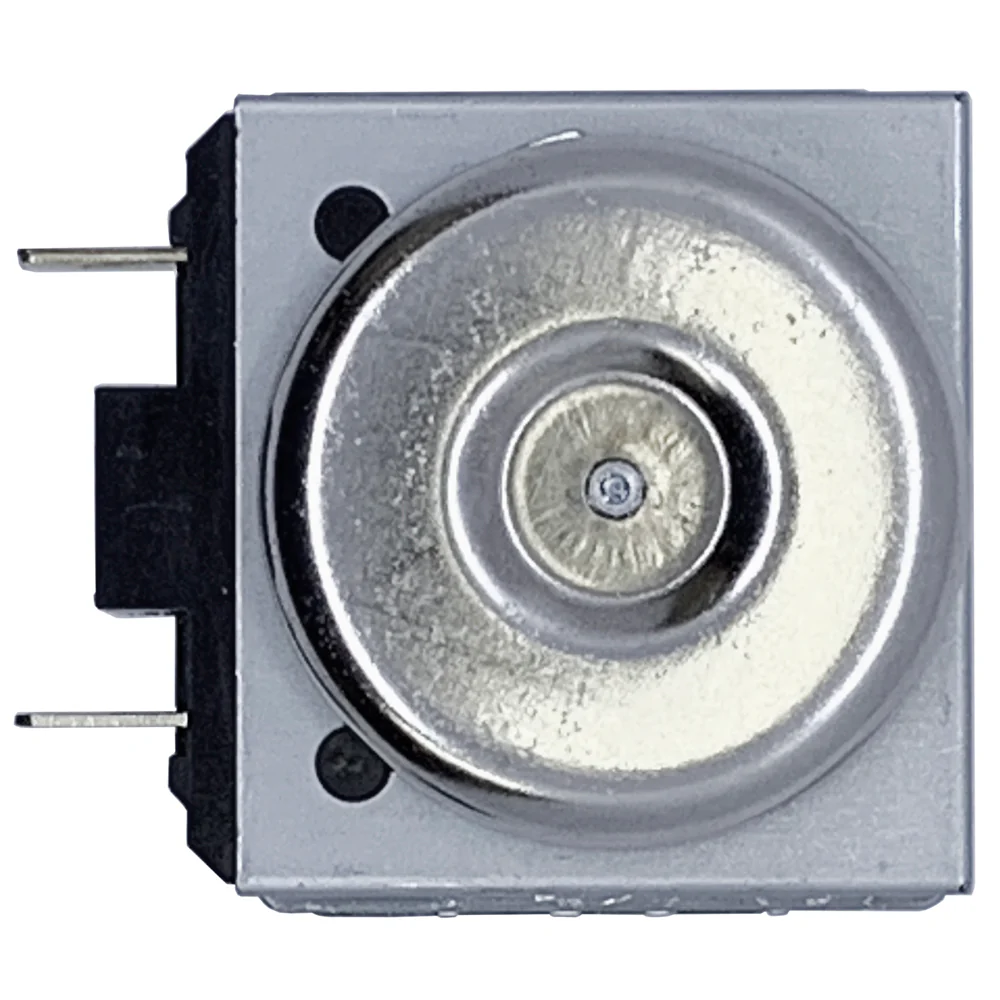

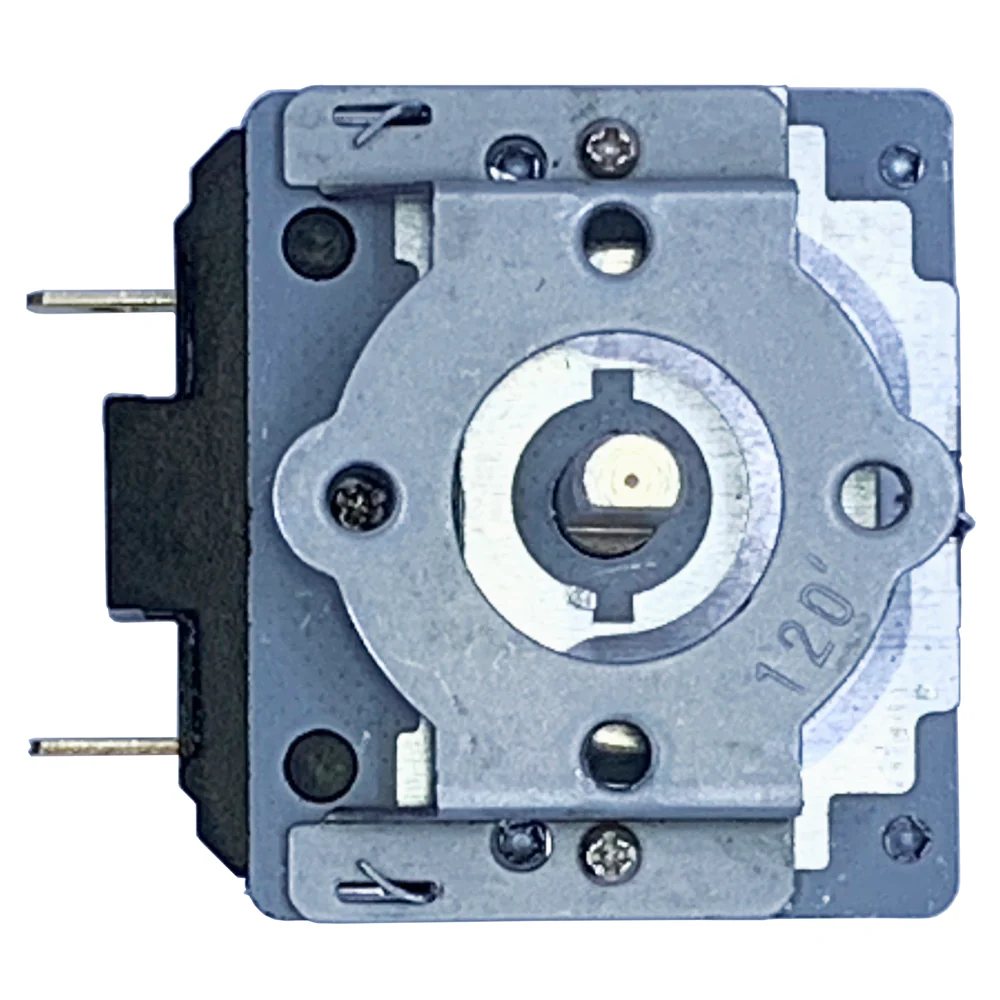

• 120 minute timer with "HOLD" position and Finish Bell
• Skirted Pointer-style Knob - push-on fit with metal retainer insert (our part # 696552)
• Mounting fasteners & hardware

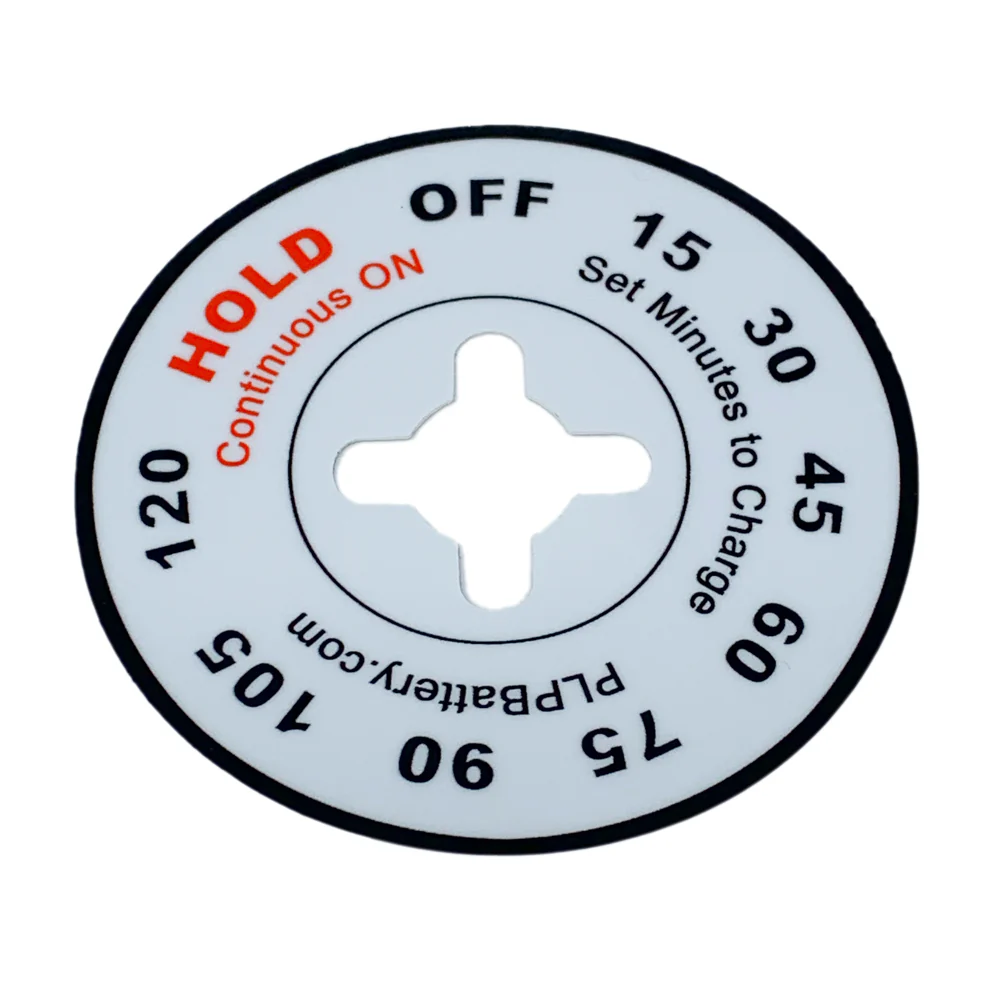

• Laminated 120 minute Dial Label
• Instruction sheet

Cross Reference

Compatible Timers
Schumacher 2299001548
Snap-On 2-14866
Century 246-167-000
Century 246-167-666
Century 246-337-000
Century 246-457-000
Century 246-457-666
Century 246-515-666
Goodall 51-245
Goodall 51-246
Goodall 246-167-000
Goodall 246-167-666
Goodall 246-337-000
Goodall 246-457-000

Compatible Chargers

CarQuest
CBC7100
CBC7200
CBC7300
CBC7500

Century
141-219-001H Century 87603H
141-297-000H
141-302-000H Century 87422
141-305-000H Century 87423
141-388
141-388-801 OS6150

Cornwell
MID-C7100
MID-C7200
MID-C7300
MID-C7500

DEKA Midtronics
CXC-7300

Exide
70-100
70-125
70-200
70-225
70-300
70-500

Goodall
51-810
51-815V
51-860
51-890
51-895

Interstate Battery
INT1000
INT3000

Midtronics
CXC-7100
CXC-7200
CXC-7300
CXC-7500

NAPA
85-1250
85-2000
85-2250
85-3000
85-5000
85-6000
85-7000
85-8100
85-2750

Schumacher Electric
PSW-7700

Snap-On
BC4200
BC5500
EEBC300
EEBC302A

Solar
141-385 Solar 1560
141-384 Solar 1440
141-384 Solar OS6120
