Heavy Duty ON-OFF Toggle Switch, SPST, 2 Push-On Terminal, 30A/12VDC, 20A/125VAC, 15A/250VAC



- SPST ON-OFF (Single-Pole, Single-Throw)
- 2 Push-On Terminal (for screw terminals use 696302)
- Nickel-Plated Brass Bracket, Actuator, and Hardware
- High-Quality Bakelite housing
- Panel-mount, 1/2 inch hole (or 12 mm)



Save 25% when you order the 5-Pack!



Each Switch Includes:
1 - Switch
2 - M12 x 0.75 Hex Panel Nut (14 mm wrench size)
1 - Flat Washer
1 - Face Plate

Specifications

Switch Function: 2P SPST, ON-OFF
Terminals: 0.250 in Push-On, Plated Brass
Rating: 30A @ 12VDC, 20A @ 125VAC, 15A @ 250VAC
Contact Resistance: 50m Ω Max
Insulation Resistance: 500VDC 1000M Ω Min
Dielectric Strength: 1500VAC, 1 minute
Operating Temperature: -25°C ~ +85°C
Electrical Life: ≥10,000 Cycles

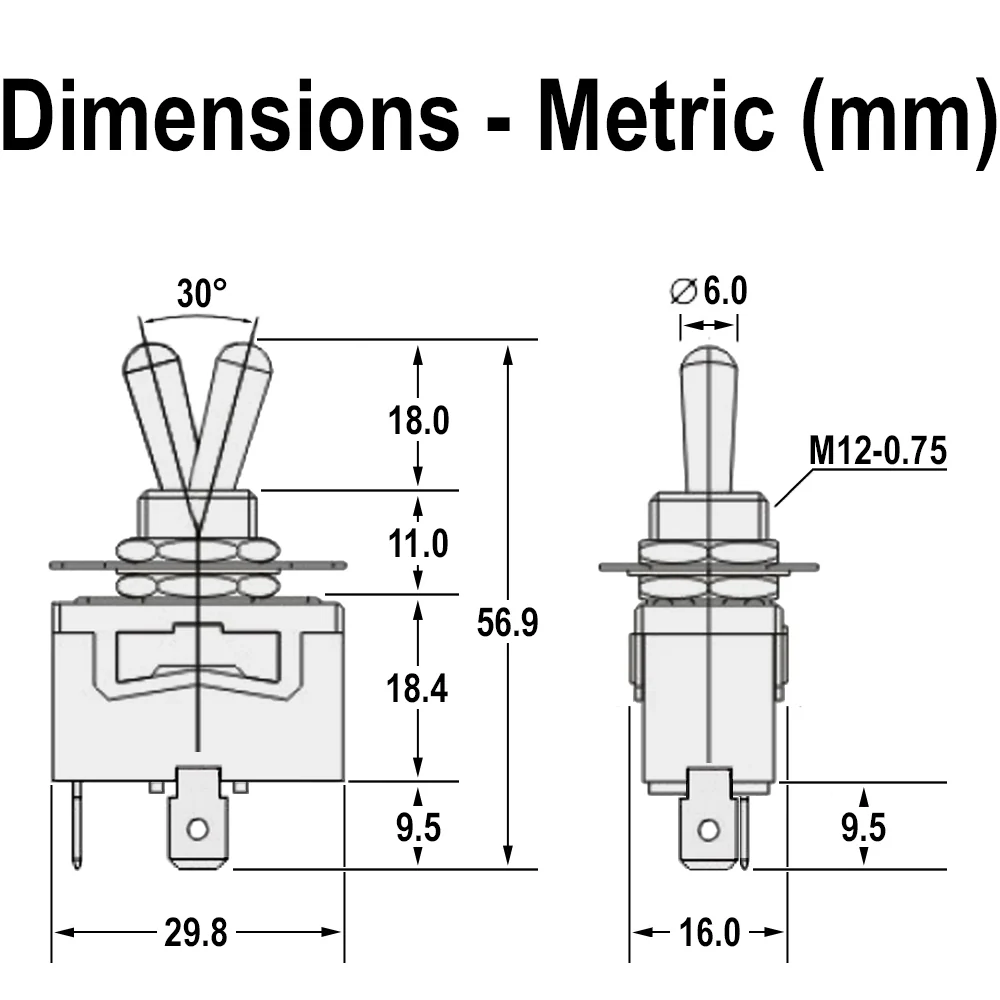

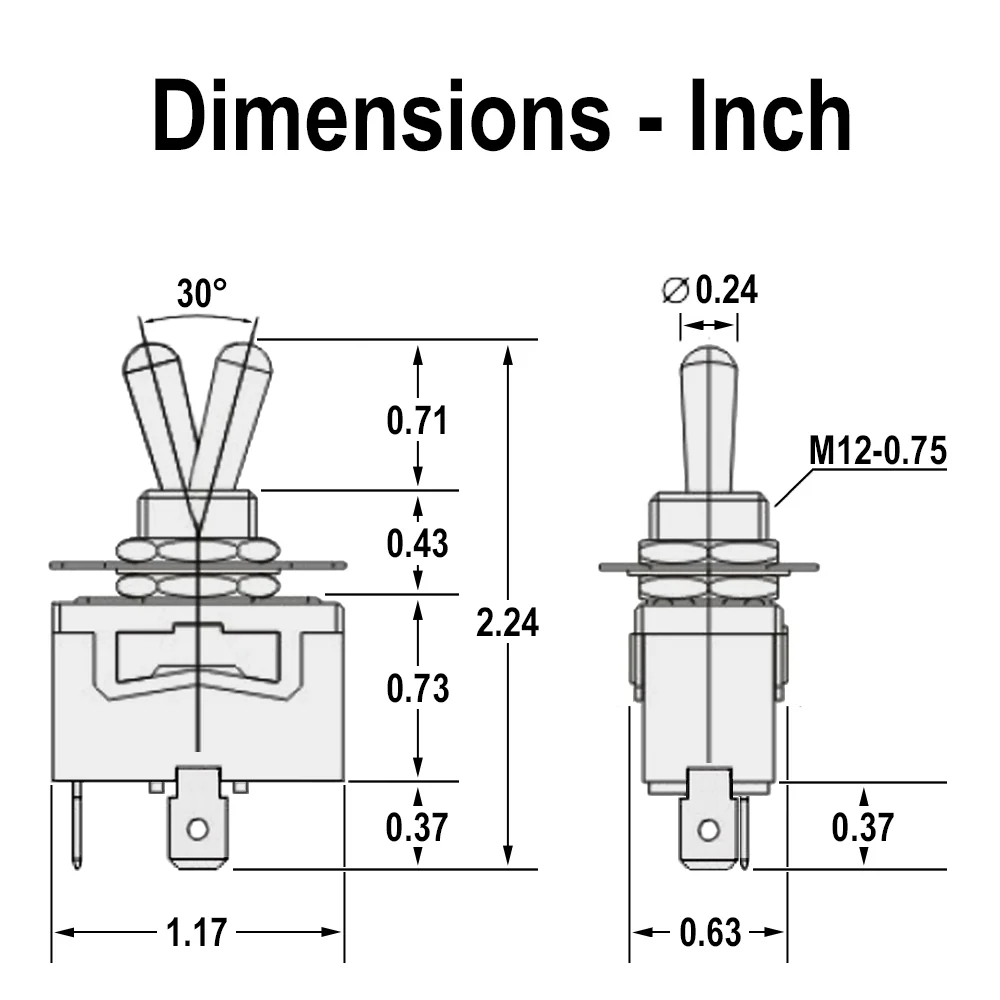

Bushing Thread: M12-0.75
Mounting Hole Diameter: 0.48 inch (12.2 mm)
Length: 1.25 in (31.8 mm)
Width: 0.65 in (16.5 mm)
Height: 2.25 in (57.2)
Weight: 0.06 lbs (26 g)
