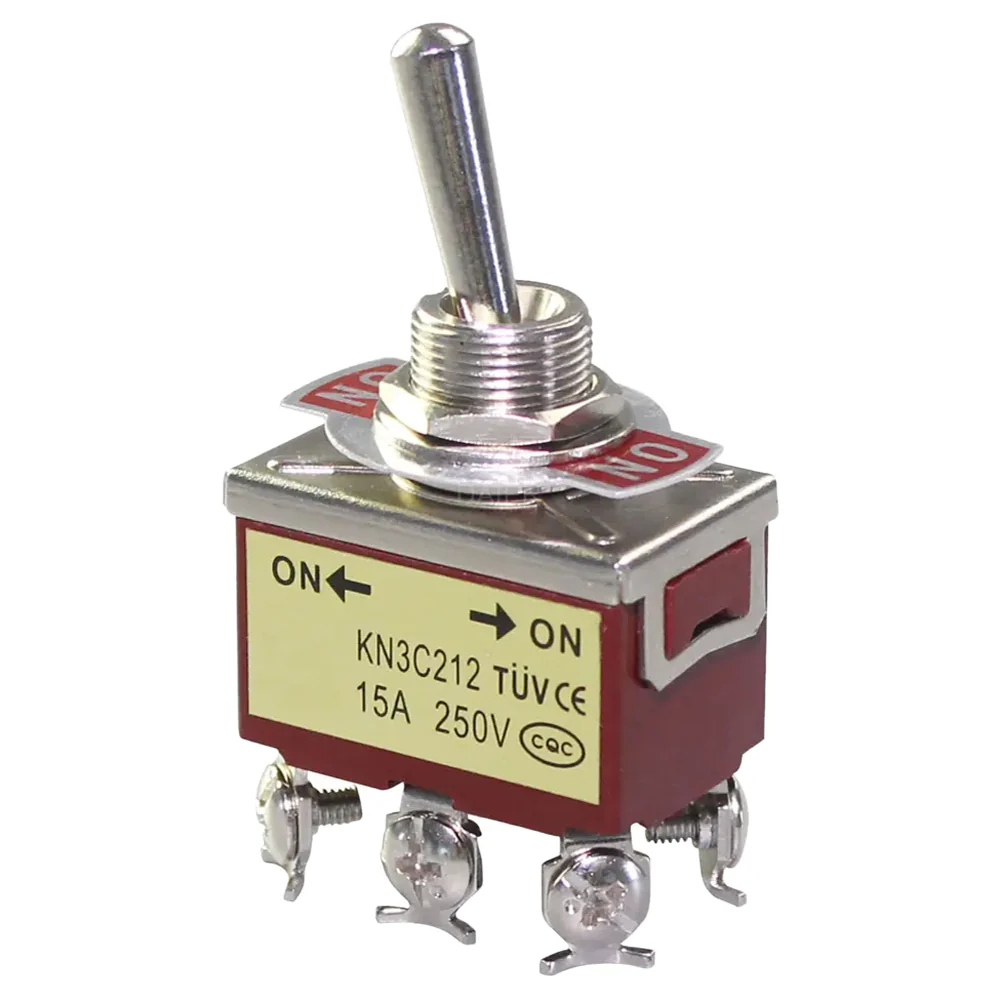

696314 - Heavy Duty ON-(ON) Momentary Toggle Switch, DPDT, 6 Screw Terminal, 30A/12VDC, 20A/125VAC, 15A/250VAC
Heavy Duty ON-(ON) Momentary Toggle Switch, DPDT, 6 Screw Terminal, 30A/12VDC, 20A/125VAC, 15A/250VAC
- DPDT ON-(ON) Momentary (Double-Pole, Double-Throw)
- 6 Screw Terminal (for push-on terminals use 696315)
- Nickel-Plated Brass Bracket, Actuator, and Hardware
- High-Quality Bakelite housing
- Panel-mount, 1/2 inch hole (or 12 mm)
Save 25% when you order the 5-Pack!
Each Switch Includes:
1 - Switch
2 - M12 x 0.75 Hex Panel Nut (14 mm wrench size)
1 - Flat Washer
1 - Face Plate
Specifications
Switch Function: 6P DPDT, ON-(ON) Momentary
Terminals: Plated Brass with M3-0.5 screw
Rating: 30A @ 12VDC, 20A @ 125VAC, 15A @ 250VAC
Contact Resistance: 50m Ω Max
Insulation Resistance: 500VDC 1000M Ω Min
Dielectric Strength: 1500VAC, 1 minute
Operating Temperature: -25°C ~ +85°C
Electrical Life: ≥10,000 Cycles
Bushing Thread: M12-0.75

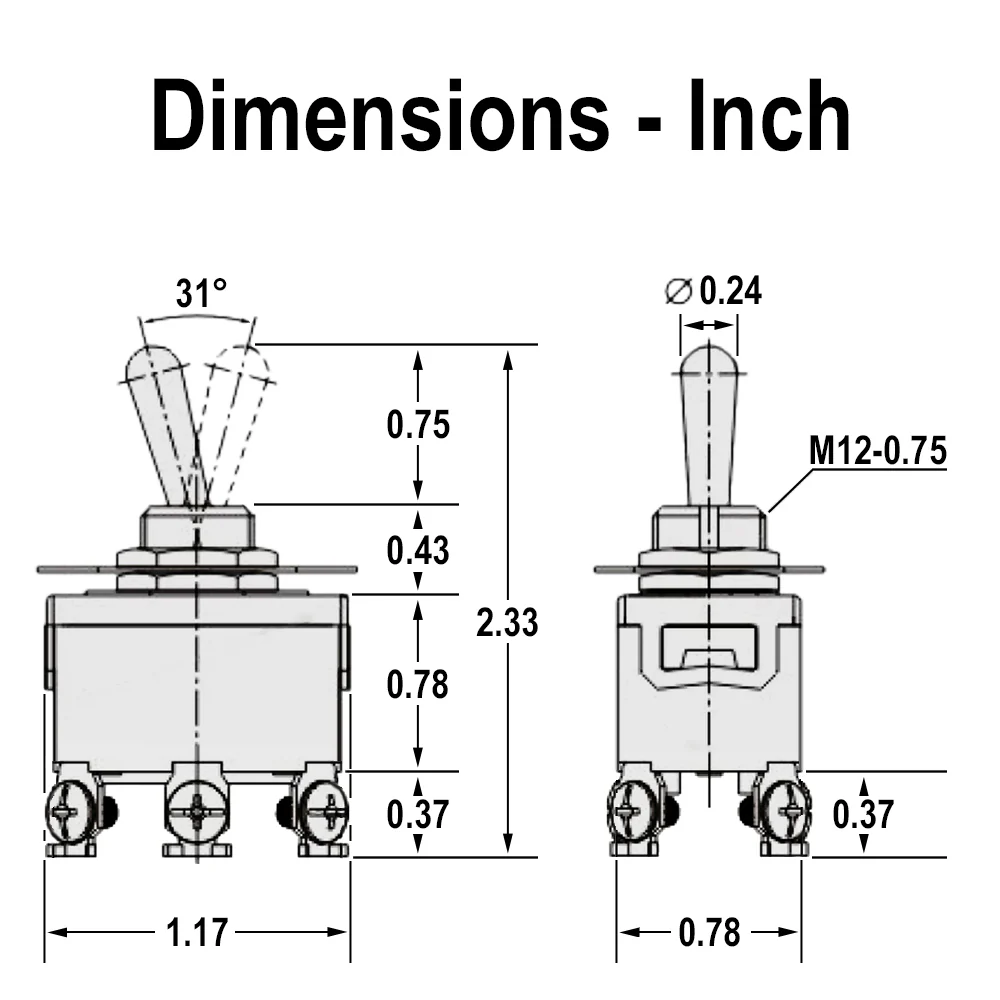

Mounting Hole Diameter: 0.48 inch (12.2 mm)
Length: 1.25 in (31.8 mm)
Width: 0.80 in (20.3 mm)
Height: 2.35 in (59.7)
Weight: 0.085 lbs (38 g)
Heavy Duty ON-(ON) Momentary Toggle Switch, DPDT, 6 Screw Terminal, 30A/12VDC, 20A/125VAC, 15A/250VAC
- DPDT ON-(ON) Momentary (Double-Pole, Double-Throw)
- 6 Screw Terminal (for push-on terminals use 696315)
- Nickel-Plated Brass Bracket, Actuator, and Hardware
- High-Quality Bakelite housing
- Panel-mount, 1/2 inch hole (or 12 mm)
Save 25% when you order the 5-Pack!
Each Switch Includes:
1 - Switch
2 - M12 x 0.75 Hex Panel Nut (14 mm wrench size)
1 - Flat Washer
1 - Face Plate
Specifications
Switch Function: 6P DPDT, ON-(ON) Momentary
Terminals: Plated Brass with M3-0.5 screw
Rating: 30A @ 12VDC, 20A @ 125VAC, 15A @ 250VAC
Contact Resistance: 50m Ω Max
Insulation Resistance: 500VDC 1000M Ω Min
Dielectric Strength: 1500VAC, 1 minute
Operating Temperature: -25°C ~ +85°C
Electrical Life: ≥10,000 Cycles
Bushing Thread: M12-0.75
Mounting Hole Diameter: 0.48 inch (12.2 mm)
Length: 1.25 in (31.8 mm)
Width: 0.80 in (20.3 mm)
Height: 2.35 in (59.7)
Weight: 0.085 lbs (38 g)
Original: $6.55
-65%$6.55
$2.29Description
Heavy Duty ON-(ON) Momentary Toggle Switch, DPDT, 6 Screw Terminal, 30A/12VDC, 20A/125VAC, 15A/250VAC
- DPDT ON-(ON) Momentary (Double-Pole, Double-Throw)
- 6 Screw Terminal (for push-on terminals use 696315)
- Nickel-Plated Brass Bracket, Actuator, and Hardware
- High-Quality Bakelite housing
- Panel-mount, 1/2 inch hole (or 12 mm)
Save 25% when you order the 5-Pack!
Each Switch Includes:
1 - Switch
2 - M12 x 0.75 Hex Panel Nut (14 mm wrench size)
1 - Flat Washer
1 - Face Plate
Specifications
Switch Function: 6P DPDT, ON-(ON) Momentary
Terminals: Plated Brass with M3-0.5 screw
Rating: 30A @ 12VDC, 20A @ 125VAC, 15A @ 250VAC
Contact Resistance: 50m Ω Max
Insulation Resistance: 500VDC 1000M Ω Min
Dielectric Strength: 1500VAC, 1 minute
Operating Temperature: -25°C ~ +85°C
Electrical Life: ≥10,000 Cycles
Bushing Thread: M12-0.75
Mounting Hole Diameter: 0.48 inch (12.2 mm)
Length: 1.25 in (31.8 mm)
Width: 0.80 in (20.3 mm)
Height: 2.35 in (59.7)
Weight: 0.085 lbs (38 g)
