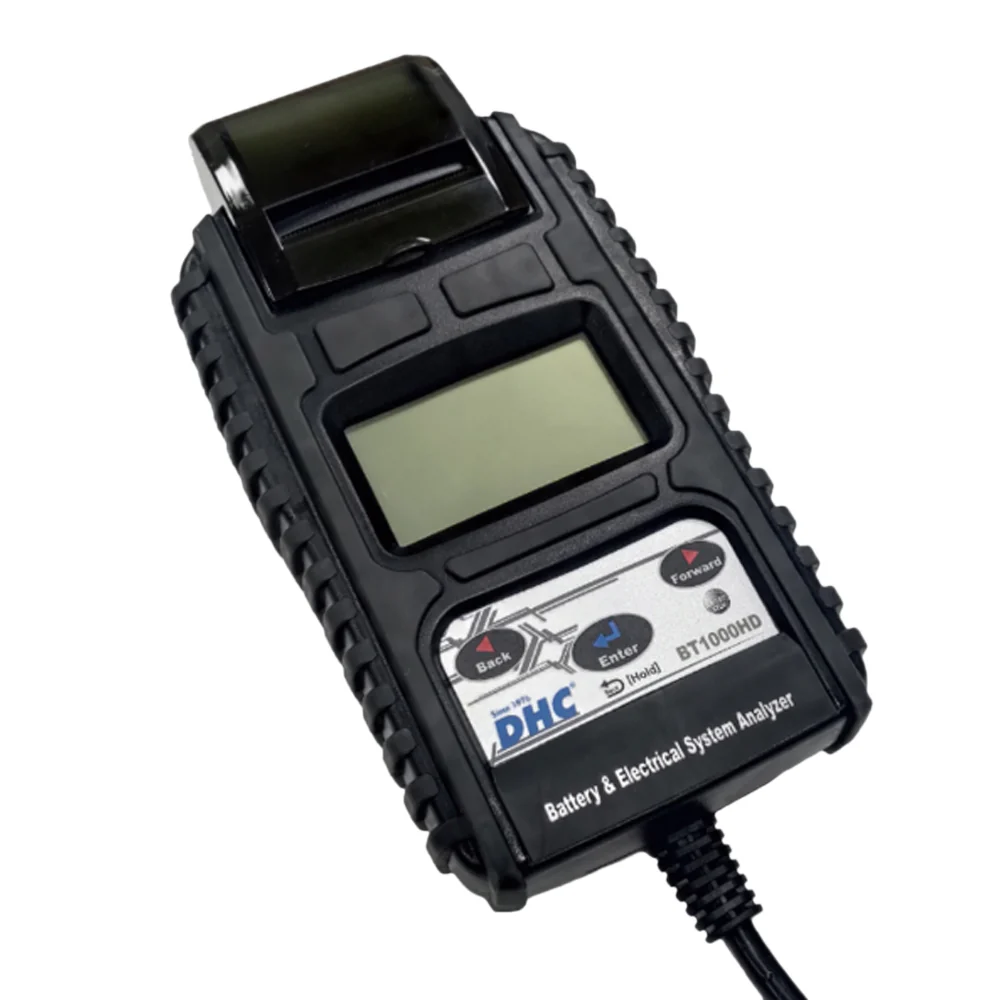

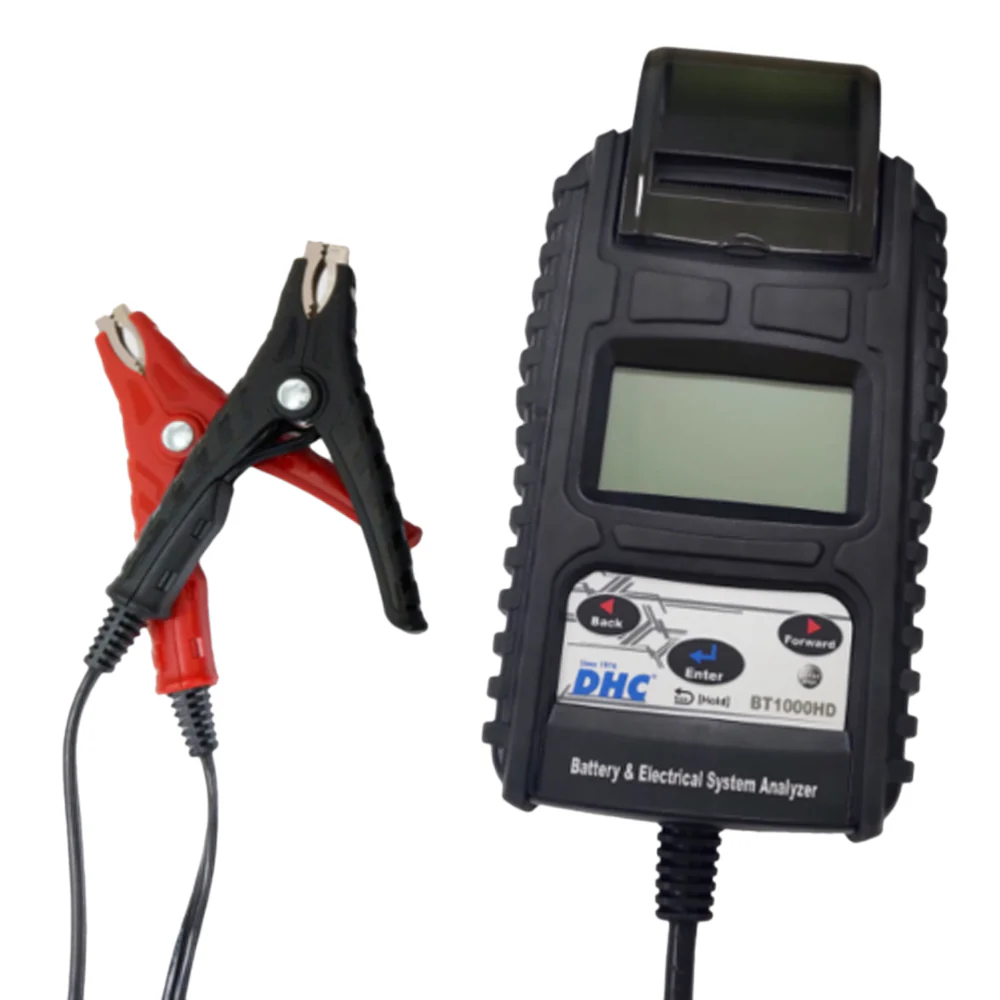

DHC BT1000HD - Heavy Duty Battery & Electrical System Tester w/ Printer (6/12/24V)
The BT1000HD from DHC is a professional battery & electrical system tester that performs 6V / 12V battery tests and features the 24V pack test for light trucks and emergency generators. Complete test results are provided on a single receipt-style printed report. The BT1000HD is also equipped with an extra-length 9.8 ft (3 m) detachable clamp set which is very useful for testing trucks and other heavy equipment.
Features
Battery, Cranking, & Charging System Tester
- 24V pack test
- 6V & 12V battery test
- 12V START-STOP battery test
- 12V & 24V cranking/charging system test
- Internal Resistance test
4 Color LCD
- Shows different colors for various test results
Built-in 2.25” Thermal Printer
- Prints a receipt-style test report with date
- Customizable Facility Information on the Test Report Printout
Start/Stop Battery Test Available
- Performs accurate test for Start/Stop batteries
In Vehicle Test
- Combines battery test & system test into a single task, providing a print out with a complete test result
Temperature Compensation
- Different temperature compensation above/below 0ºC (32F)
DIY Information
- Able to edit the customized information on the printout receipt

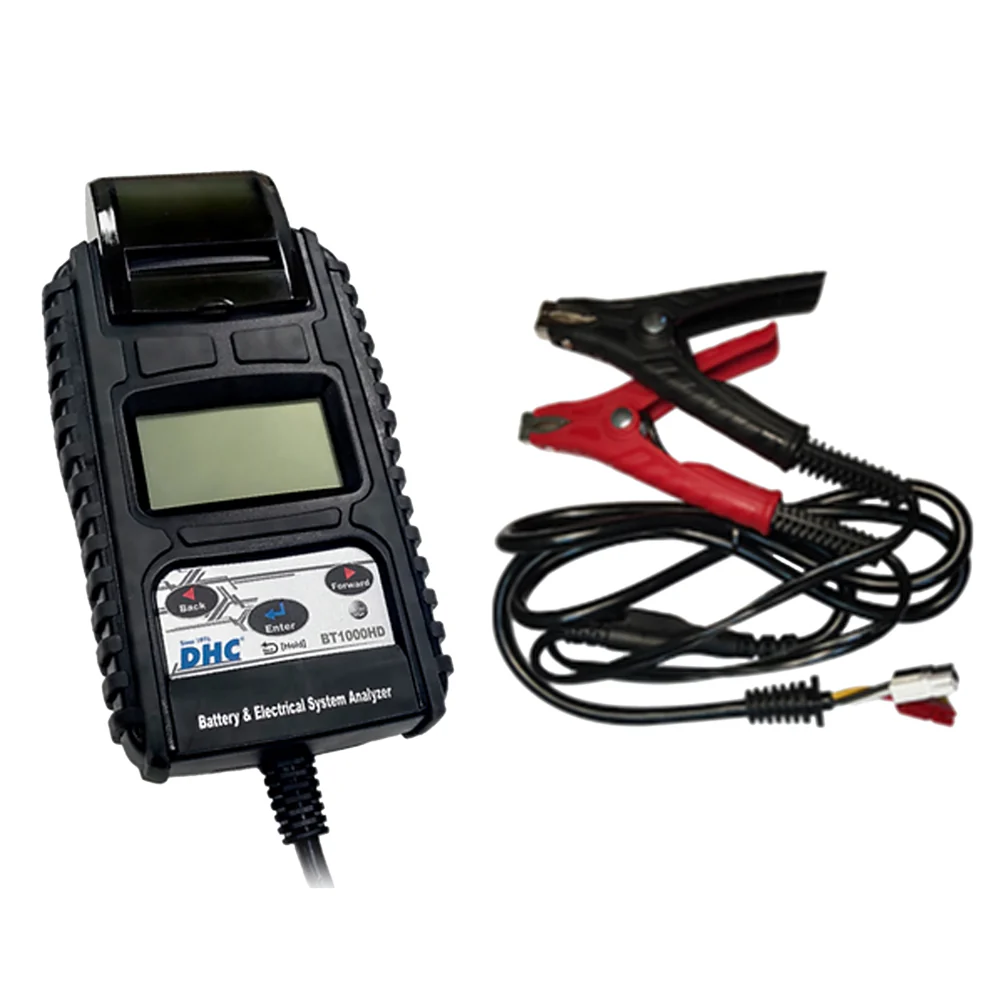

Detachable Cable
- 9.8 ft (3M) detachable cable for easy replacement
Heavy Duty Casing
- Strong and durable casing design
Test Code
- Test code decoder for decoding and saving test records
Print Last Result
- Able to directly print last test result without re-testing
Backward Function Key
- Selected wrong setting? Hold the enter key and go back to the previous stage
12-Month Warranty
Specifications
DHC BT1000HD Specifications
Battery Tests: 24V pack test / 6V & 12V battery / 12V START-STOP battery test
Cranking/Charging System Tests: 12V & 24V cranking/charging system test
Internal Resistance Test: Yes
Supported Battery Types: Flooded, VRLA/GEL, AGM Flat, AGM Spiral, EFB
Battery Ratings: CCA/SAE, EN, JIS, DIN, IEC, CA/MCA
Operating Range: 40~2,000 CCA (SAE)
Voltage Range: 1V ~ 31.5V
Length: 9.85 in (250 mm)
Width: 5.12 in (130 mm)
Height: 1.78 in (45 mm)
Weight:
Display: 4-line & 4-color large LCD with adjustable brightness
Printer: 2” thermal printer
Test Code/Test Counter: Yes
Detachable Cable: Yes
Languages: English, French, Spanish, German, Italian, Portuguese

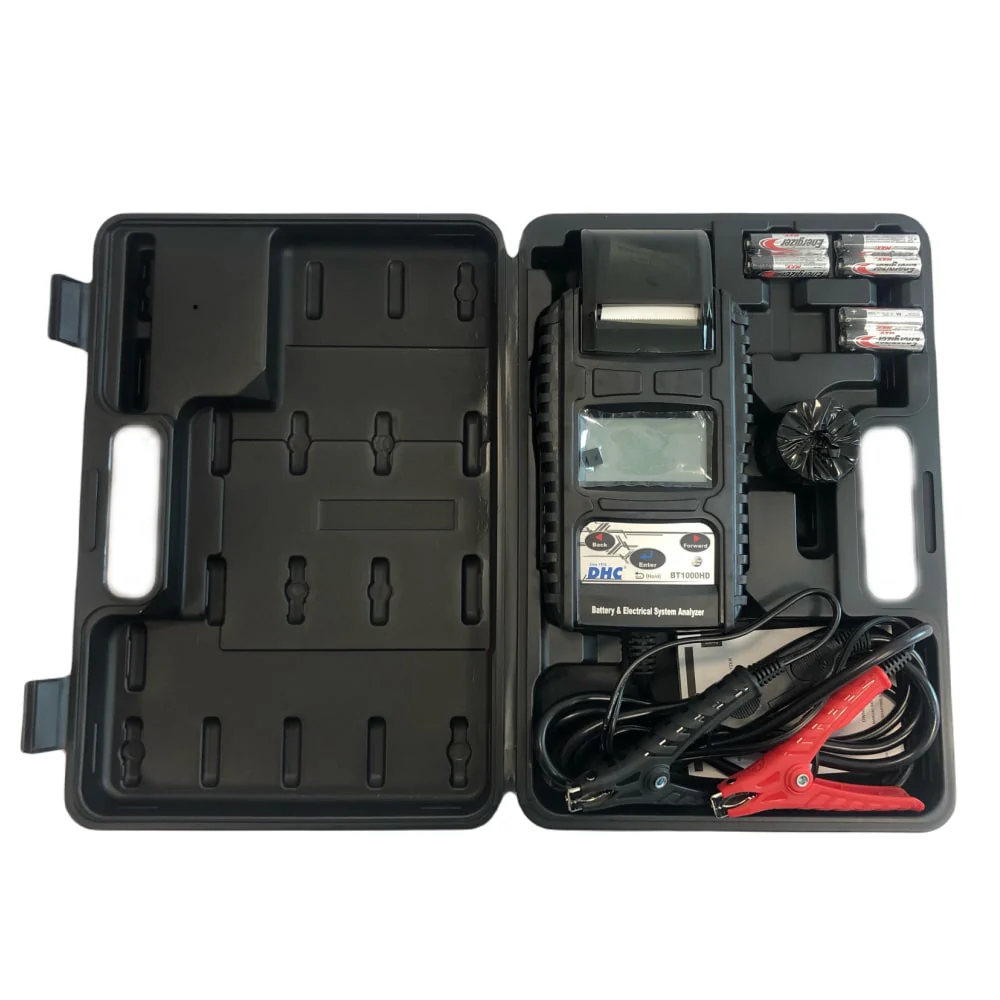

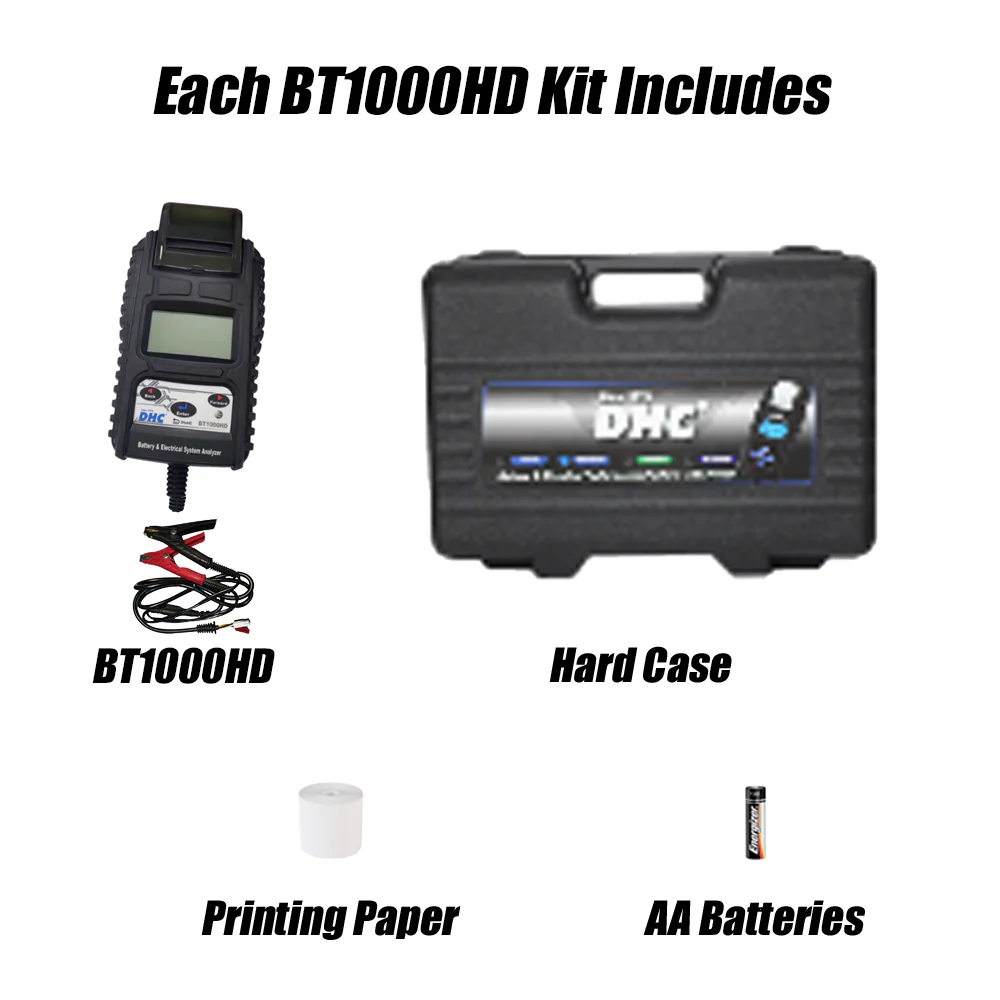

What's in the Box
- BT1000HD Tester
- Thermal Printing Paper (uses standard 2.25" thermal printer paper, available at any office supply store)
- AA batteries
- Software
- USB cable
- Hard-Shell Protective Carrying Case
